VACULEX TS – for stacking of goods

• Uniqe layout made for stacking goods between low and very high levels.

• Unmatched ergonomics for stacking.

• Configurable for handling of different goods such as boxes, sacks and sheets of metal etc.

• Configurable with most Vaculex accessories.

• Customized versions available on request.

Easy handling for low and high stacking heights

Low and high stacking heights

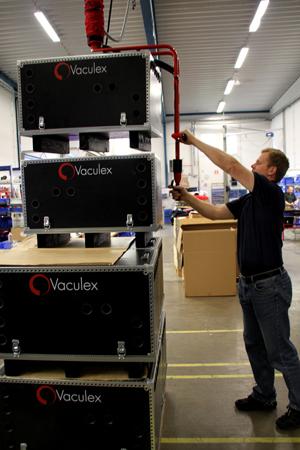

Vaculex TS was developed to solve issues with handling goods between low and high stacking heights.

Easy to grip and release goods

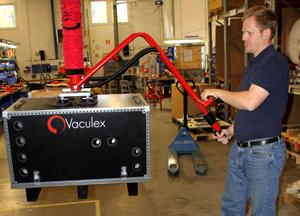

Vaculex TS makes it easy to grip or release goods with a high level of control even at levels far above the operators head.

Unique design

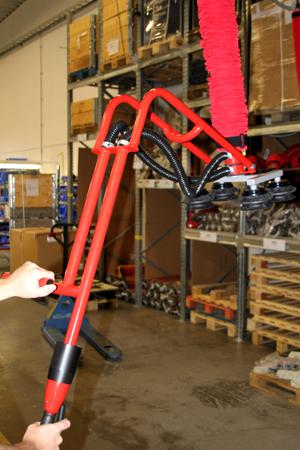

The unique design of the Vaculex TS control handle also makes it possible to pick items at floor level without either kneeling or bending to reach the objects.

Highly flexible
The Vaculex TS is easily customized to fulfill your specific needs. The control handle principle for stacking can also be utilized on the Vaculex VL product series.

Video of Vaculex TS

Vaculex Lifting Systems

Vaculex, a leading manufacturer of lifting systems based on vacuum technology is now part of the Piab group. The combined company will become a stronger partner for customers world-wide, by providing an extended product portfolio and joint expertise with global reach.

Vaculex develops and manufactures lifting solutions for industries with high demands on ergonomics, safety and efficiency. They provide the most innovative and safe lifting equipment on the market.

Repeated lifts cause dangerous and costly injuries. Our tube lifters minimize and reduce the risk of accidents and injuries to the user as well as damage to the goods

Users of Vaculex products have highlighted reduced injuries, improved working environment and increased efficiency.

Flexible Solutions can be Installed Anywhere

The flexibility of the Vaculex products means that they can overcome many of the physical constraints that might occur on your premises. Whether retrofitting into an existing terminal or planning for a new building they can offer solutions that will adapt to existing or required infrastructure.

Vaculex TP 0-65 kg Vacuum lifter for very rapid material handling.>>More Details

Vaculex VL 30-250 kg              General purpose vacuum lifter built on a modular system for easy adaption. >>More Details

Vaculex ParceLift 0-40 kg   Vacuum lifter for very rapid loading or unloading of containers or trailers.>>More Details

Vaculex ML 0-55 kg General purpose vacuum lifter built on a modular system for easy adaption.>>More Details

Vaculex TS 0-65 kg              Vacuum lifter for high stacking of boxes etc. >>More Details

Vaculex TL 0-50 kg   Vacuum lifter that handles laundry sacks and mail sacks..>>More Details

watch videos of Vaculex

Vaculex TP

Vaculex TP is designed for rapid material handling

Vaculex TP is a vacuum lift specifically designed for rapid handling of goods at Parcel Carrier Terminals, Distributions Centers and Airports.
Extremely versatile
Vaculex TP is extremely versatile and handles a great variety of goods in size, shape and weight. Vaculex grips the goods from any side and lifts it, you can easily rotate either the lift or the goods 360º to place it where required.
Vaculex TP decreases strain injuries
Lifting fast in poor posture does not require heavy weights to cause pain and strain injuries.

Vaculex TP is very user-friendly and requires minimal training to operate. It is so light and easily managed that working speed and productivity are maintained or in many cases increased, which is usually the contrary when using a lifting aid.

Vaculex TP is available in many versions with many accessories
Vaculex TP can be configured for many tasks. It is available with Vaculex patented low inbuilt height technology which makes it possible to fully utilize the lifter in areas with low ceiling height.

Vaculex TP is available in Stainless Steel, versions; it can be equipped with our energy saving system ATOP, remote controls, different suction feet, parking positions and other options to make it fully suit your needs.

Vaculex TP is designed for very rapid handling of goods up to 40 kg but is also available in versions for lifting goods up to 65 kg.

Who is the typical customer of Vaculex TP?
Typical customers within this segment are parcel carrier terminals, airports, distribution centers, transportation, warehouses, mail order, air cargo and other businesses where frequent, and fast lifting takes place.

watch videos of Vaculex TP

How to use Vaculex TP

Adaptation for right or left handed persons Detach the release button and insert into the anchorage point on the opposite side, dependant on if the operator is right or left handed.
Control lever  Attach the suction cup onto the load. When decreasing pressure on the control lever the lift raises. Lower the lift by increasing pressure on the control lever. Without load the lift is raised to its pre-set balancing position.
Rotating the load The entire control unit with load can be rotated. When the load needs to be twisted into a confined space, rotate the load when the control unit is held stationary.
Gripping angles The load can be attached from any side. When gripping from the side, angle the suction cup forwards.
Release button Press the release button and the load will be released. This is useful when you don’t want to wait for the parcel to reach solid support.

VACULEX VL – A safe, strong tube lifter that lifts almost anything

Vaculex VL is our most heavy-duty vacuum lifter
.

Vaculex VL tube lifter is a strong, versatile and user-friendly model for use with two hands and for lifts between 30 and 200 kg.

Vaculex is available in six lift tube sizes, between 100 mm and 200 mm, with five different vacuum pumps and many accessories and suction feet for a virtually infinite number of combinations. Normally, Vaculex is driven by an electric vacuum pump for best performance and flexibility but we can also provide pneumatic vacuum pumps if required.

Lift almost everything
With a vacuum tube lifter you can lift boxes, sacks, drums, sheet metal, computers, crates, barrels, TVs and much more – depending on equipment and accessories.

The design consists of a pump, vacuum hose, lift tube, control unit and finally a suction foot or possibly a gripping tool which is adapted to your needs.

Good ergonomics is good economics
Repeated lifts do not have to be heavy to be both dangerous and costly. Most often, vacuum tube lifters lead to an increased work rate and better productivity.

Costs for extended periods of sick leave are reduced and rehabilitation periods are avoided. Our tube lifters minimize that type of problem and also reduce the risk of accidents that can injure the user as well as damage the goods.
